WAVE ARMOR JET SKI DOCKS
PWC PORTS - PRO SERIES
The Next Generation in PWC Ports, the Apex Series are the easiest and largest Drive On/Roll Off PWC ports on the market. RotoMolded and Marine Grade EPS Foam Filled and packed with features like soft self-adjusting urethane wheels that can be moved and adjusted to fit your needs. The APEX5 and APEX6 are custom made 2 ft longer to accommodate larger PWC and Jet Skis. APEX Sport was built for smaller PWC’s like Sea-Doo Spark Series, Yamaha EX Series and stand-up Jet Skis
SPORT PORT
Features:
- Rotationally Molded, UV protected polyethylene durable shell
- 100% Foam-filled with marine grade EPS foam
- Integrated side pontoons
- Molded-in direct connect pockets in front only
- Molded-in rubber bow stop for soft and safe docking
- Quick clip & stainless-steel chain
- 12 Adjustable EVO Sport Standard Wheels
- Available color: Tan Flagstone Textured Finish
Dimensions:
- Port Width: 59” Wide
- Port Length: 11’ Long
- Weight: 180 LBS
- Weight Capacity: 700 LBS
PRO 6
Wave Armor’s NEW PRO6 PWC port is 6 feet wide by 12ft 8 inches long. The Wave Armor PRO6 is basically the SLX6 on steroids. The entry wheels are wider and softer making heavy skis roll easy while reducing wear and tear on the bottom of ski.
Dimensions:
- Port Width: 6 feet Wide
- Port Length: 12 ft 6” Long
- Weight: 300 LBS
- Weight Capacity: 2100 LBS
Included:
- Molded-In rubber bow stop soft and safe docking
- Quick clip & stainless-steel chain
- 12 Adjustable wheels
PRO MAXX 6′
Wave Armor’s PRO MAXX 6' PWC port is 6 feet wide 14 ft long and is one on the largest drive on/drive off Jet ski ports on the market. Designed two-feet longer than previous models, this port is transitional between heavier (3-seater jet ski) and smaller boats. The PRO MAXX 6' is built with an additional 12” in width for more comfort when walking around the jet skis.
- Port Width: 72” Wide
- Port Length: 168” Long
- Weight: 350 LBS
- Weight Capacity: 2100 LBS
Includes:
- Stainless-steel chain & Clip
PRO SERIES PWC PORTS
Wave Armor once again sets a new gold standard for the floating drive-on/off port market. This all new PRO PORT series is a perfect combination of the SLX series compact size with all the upgrades of the APEX series, plus several new features! PRO series ports feature a new gradual entrance and a deeper midsection of the port for unmatched drive on/off experience and perfect fit for the PWC with the deeper hull design.
PRO PORT 5′
The Pro Port 5' (5 Ft. Wide) Port is designed to allow two Ports side-by-side, fitting perfectly into a 10-Foot Slip.
- Rotationally Molded UV Protected Polyethylene Durable Shell
- 100% Foam-Filled Interior with Marine Grade EPS foam
- 12 Adjustable shock-absorbing wheels
- Tan Flagstone Textured Finish
- Molded-In Mounting Pockets In All Corners. Multiple Mount options
- Port Length: 12 Ft. 9 In. Long
- Port Width: 5 Ft Wide
- Weight Capacity: 1500 Lbs
- 8 Year Warranty
PRO MAXX 5′
With the same great features as the PRO ports, the PRO Maxx 5 and 6 are both longer and wider, and more adjustable to fit your water activity needs.
• 4 soft blue entrance wheels for ease of entry, with maximum hull protection*
• The gradual entrance makes it smooth and flat
• Accommodates longer skis than the Pro series
• Molded in bow stop with chain and clip
• Mid-section molded to fit deeper hulled machines
Weight300 lbs
Dimensions168 × 59 × 18 in
PRO WIDE BODY
With the same great features as the PRO ports, the PRO Wide Body offers additional walk-around space by expanding the width to 80″.
• 4 soft blue entrance wheels for ease of entry, with maximum hull protection*
• The gradual entrance makes it smooth and flat
• Molded in bow stop with chain and clip
• Additional wheels and flexibility allows for precise alignment of PWCs to port, and allows the PWCs to come on smooth and easy while sitting flat on the port
Port Width: 80” Wide
Port Length:150" Long
SLX SERIES PWC PORT
The SLX Series ports are the original easy drive on/roll off port that changed industry standards by switching to an independent wheel system rather than stiff roller system. The SLX series ports are still the envy of the industry for their ease of use and versatility. The SLX6 PWC port is designed to integrate with our Wave Armor floating dock system and can also be installed as a stand-alone system or connect together with other floating dock brands and structures.
SLX5 PWC PORT
The SLX5 (5 Ft. Wide) Port is designed to allow two Ports side-by-side, fitting perfectly into a 10-Foot Slip.
- Rotationally Molded UV Protected Polyethylene Durable Shell
- 100% Foam-Filled Interior with Marine Grade EPS foam
- 12 Adjustable shock-absorbing wheels
- Tan Flagstone Textured Finish
- Molded-In Mounting Pockets In All Corners. Multiple Mount options
- Port Length: 12 Ft. 9 In. Long
- Port Width: 5 Ft Wide
- Weight Capacity: 1500 Lbs
- 8 Year Warranty
SLX6 PWC PORT
The SLX6 (6 Ft. Wide) Port is designed to provide additional room around the PWC for increased accessibility.
- Rotationally Molded UV Protected Polyethylene Durable Shell
- 100% Foam-Filled Interior with Marine Grade EPS Foam
- 12 Adjustable Shock-Absorbing Wheels
- Molded-In Mounting Pockets In All Corners. Multiple Mounting Options
- Port Length: 12 Ft. 9 In. Long
- Port Width: 6 Ft Wide
- Weight Capacity: 2000 Lbs
- 8 Year Warranty
Wave Armor Jet Ski Docks by Maui Docks in Florida . Delivery And Installation Anywhere In Florida
6 Options To Choose From
Comparison Chart
Please click below to see our two page comparison chart or feel free to give us a call anytime with questions 407-636-0160.
JET SKI DOCK ACCESSORIES
PORT TO PORT CONNECT KIT
SLX TO FLOATING DOCK KIT
PORT TO PORT CONNECT KIT
Double your fun and connect a pair or multiple PWC Ports together utilizing our innovative poly connecting pin system. Pins are placed in the adjacent mounting pockets of your Ports for a secure and rugged hold.
PORT SNAP CAPS
SLX TO FLOATING DOCK KIT
PORT TO PORT CONNECT KIT
The Port Snap-In Caps are available to cover unused mounting pockets in your PWC Port, creating a clean, finished look and a flush surface to walk on!

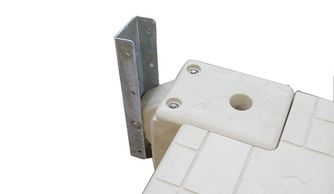

SLX TO FLOATING DOCK KIT
SLX TO FLOATING DOCK KIT
SLX TO FLOATING DOCK KIT
Our proprietary SLX Floating Pin / C-Channel connection system allows you to connect SLX5 and SLX6 PWC Lift Ports to most floating docks utilizing the SLX mounting pockets.
PORT TO FIXED DOCK MOUNTS
PORT TO FIXED DOCK MOUNTS
SLX TO FLOATING DOCK KIT
Secures your PWC Ports to a fixed dock or sea wall utilizing aluminum brackets and U-bolts. Adjustable extension from 8" to 18"
3 INCH PIPE SLEEVES
PORT TO FIXED DOCK MOUNTS
3 INCH PIPE SLEEVES
Oversized Pipe Sleeves fit inside the mounting pockets of the PWC Ports, Reduce hole to 3" allowing the Port to easily slide up and down dock posts in varying water levels.
HIGH WATER MOUNTS
PORT TO FIXED DOCK MOUNTS
3 INCH PIPE SLEEVES
Port to Fixed Mounts for High Tides
2 Foot Side Extension Piece
Add flotation for more standing room
Increases the width of the Port by 22 inches.
Increases the width of the Port by 22 inches.
Includes: 1 Side Extension, Port to Port connection kit
Increases the width of the Port by 22 inches.
Increases the width of the Port by 22 inches.
Increases the width of the Port by 22 inches.
Attaches to either side of PWC Wave Port utilizing poly connecting pins placed in the unused mounting pockets.
